Through Connector

Circuit Check is a pioneer in the development and implementation of access mechanisms enabling testing of circuits through on-board connectors.

  • Automated testing through signal connectors
  • Accessing high pin count connectors

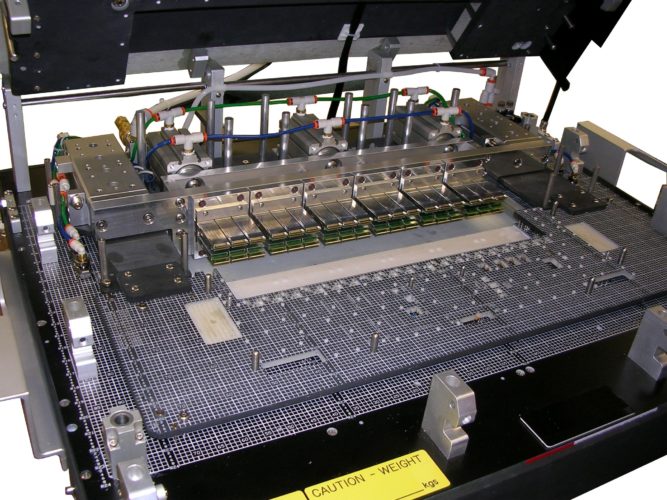

  • Automated insertion and extraction of high density connectors
  • Aligning and accessing surface mount connectors

Circuit Check through connector test capabilities include:

  • Ventura connectors
  • VHDM connectors
  • Airmax connectors
  • GBX connectors
  • Coax connectors
  • Dimm connectors
  • Power connectors
  • HDMI
  • MCX, MCM
  • N style connectors
  • Fakra connectors
  • Cinch Jacks
  • Backplane connectors
  • Board to Board connectors
  • Board to Cable connectors

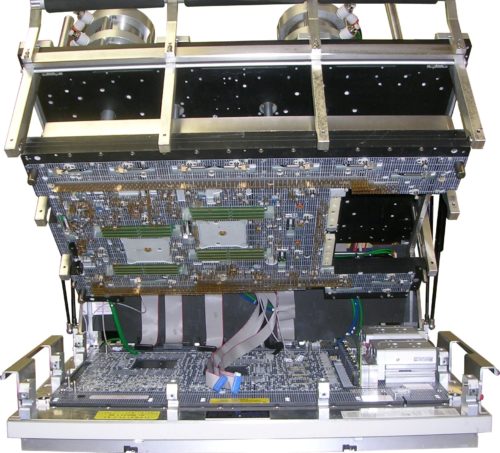

  • Loop back interposer design & manufacture
  • Gold finger and custom interface designs
  • Custom circuit design to allow mating connectors to be utilized

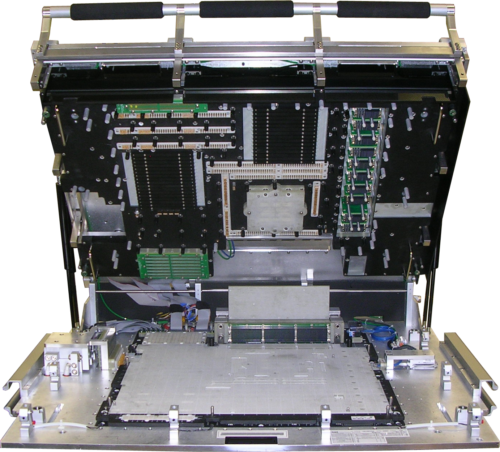

Wireless Functional Test Fixtures
