In-Line / Board Handler

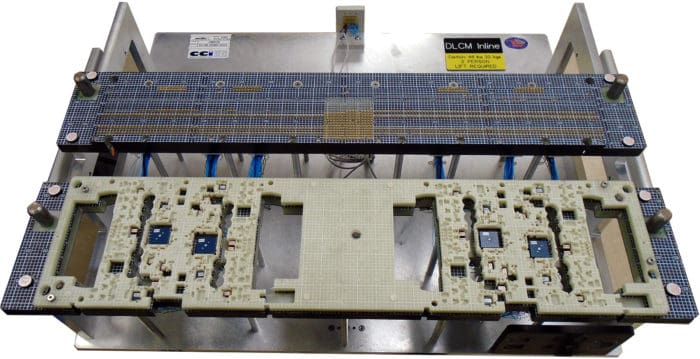

81063 4 Module In Line Jig Plate

In-Line Fixturing

Circuit Check’s in-line board handler fixturing exceed the high performance requirements associated with high-volume production.  Circuit Check supports in-line fixturing for all the leading ICT handlers including Circuit Check’s AFS5500, Keysight 5i, Teradyne TSh Multi-Site, IPTE and Pematech.  Circuit Check is the go-to partner for in-line functional test fixtures to speed production throughput.

In-Line Functional Test Fixtures

Add an advantage to in-line production with fast change over interchangeable fixturing.  Circuit Check’s in-line board handlers and in-line board handler fixturing exceed the high performance requirements associated with high-volume production.  Circuit Check supports in-line fixturing for all the leading handlers.

In-Line ICT Fixtures

Fully automated in-line ICT systems for high volume production add the advantage of fast change over time for different assemblies using interchangeable fixturing. Circuit Check’s in-line board handlers and in-line board handler fixturing exceed the high-performance requirements associated with high-volume production.  Circuit Check supports in-line fixturing for all the leading handlers:

  • Circuit Check’s AFS55oo

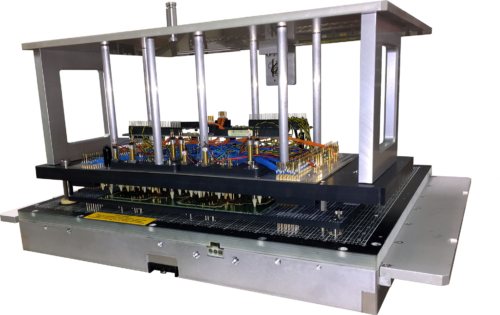

  • Keysight 5i
  • Teradyne TSh Multi-Site

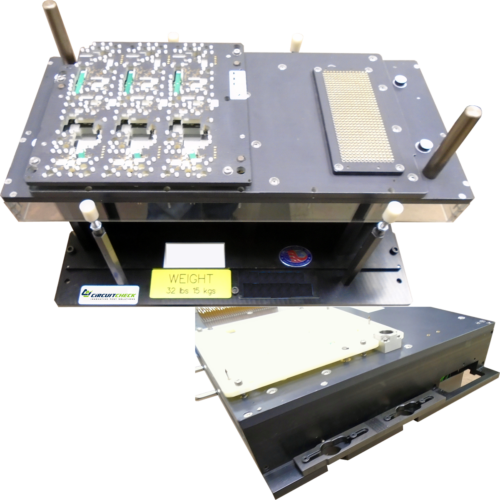

  • IPTE
  • Pematech

Unlike other supplier’s in-line fixturing, Circuit Check adds it’s best-in-class probing and sensor placement technologies. In-line fixtures from Circuit Check can be configured to ensure maximum value from your test station:

  • Dual Sided probing
  • LED sensing
  • Marker probes
  • Stripper plates
  • Switch probes

Circuit Check’s In-Line Handler is a unified in-line handler that is software and hardware agnostic, enabling adaptability to a variety of off-the-shelf lower cost functional test software and hardware.

Both ICT and Functional In-line fixtures from Circuit Check can be configured with our best-in-class probing and sensor placement technologies to ensure maximum value from your test station.
